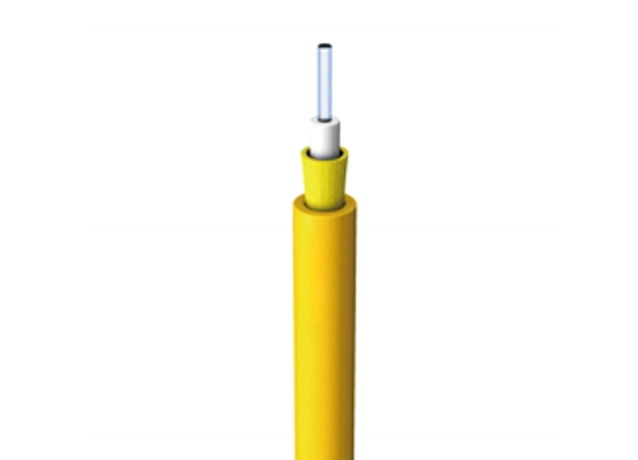

Single-Core Indoor Cable

Name: Single-Core Indoor Cable
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

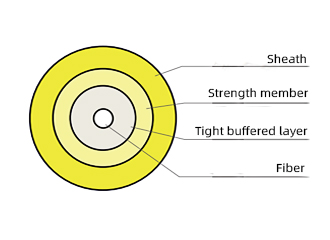

Single tight buffered fiber, high modulus aramid yarn strength member, and high-performance sheath materials.Widely used in various optical jumpers and device leads, suitable for indoor and outdoor environments such as optical communication equipment rooms, optical distribution frames, and optical equipment connections

Get a Quote >

Range of application

Direct connection with standard connector;
Element of several kinds of indoor cable;
Indoor cabling.

Requirement for Order

Fiber type: single-mode fiber G652B/D, G657 or G655A/B/C, multi-mode fiber A1a, A1b or OM3, or other types.
Selection of materials: According to customer demand, the sheath materials can adopt PVC, PU, LSZH, PLENUM, etc.

Structure and Technical Specifications of Single-Core Indoor Cable

Type	Outer diameter D	Weight	Tensile strength		Minimum bending radius (mm)		Crush resistance
	(mm)	(kg/km)	(N)				(N/10cm)
			Short-term	Long-term	Dynamic	Static	Long-term	Short-term
	2	4.5	100	60	60	30	100	500
GJFJV-1	2.4	6	100	60
	3	7.8	100	60
Storage temperature		-20℃～+60℃
Operating temperature		-20℃～+60℃
Remark: all the values in the table are reference value, subject to the actual customer request.
