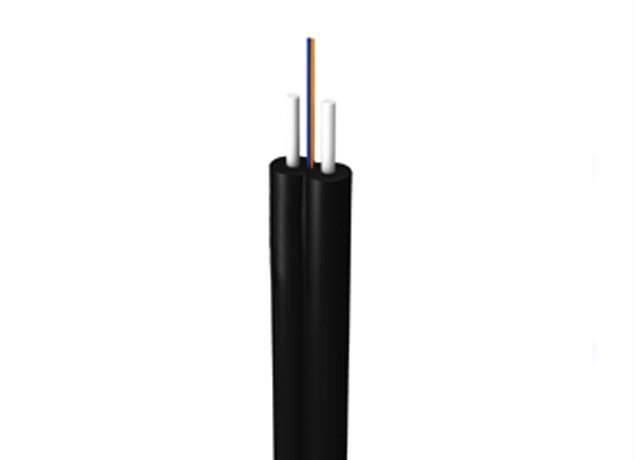

Butterfly Drop Cable

Name: Butterfly Drop Cable
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

It is mainly used as a fiber to the home (FTTH) and other fiber optic access (FTTx) network user introduction segment cabling cable for communication between indoor user access points and optical network terminals (ONTs). It can be used for laying in indoor environments such as vertical shafts, concealed pipes, cable trays, walls, flower boards, etc. It can be matched with connectors for pre termination and on-site termination.

Get a Quote >

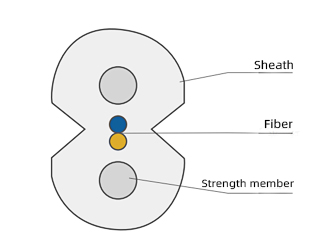

Structure and Technical Specifications of Butterfly Drop Cable

Type		1-4 Core	3*2 mm
Weight		1-4 Core	10kg/km
Minimum bend radius		G657A1	15mm
		G657A2	7.5mm
Pulling force	short-term	GJXH	200N
		GJXFH	100N
	long-term	GJXH	100N
		GJXFH	60N
Storage temperature		-20℃～+70℃
Operating temperature		-20℃～+70℃
Remark: all the values in the table are reference value, subject to the actual customer request.

Structure and Technical Specifications of Butterfly Drop Cable
