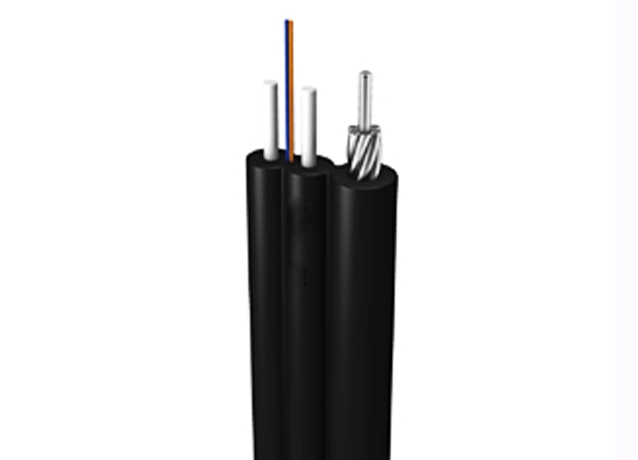

Self-Supporting Butterfly Drop Cable

Name: Self-Supporting Butterfly Drop Cable
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

It is mainly used as a fiber to the home (FTTH) and other fiber optic access (FTTx) network user introduction segment cabling cable for communication between indoor user access points and optical network terminals (ONTs). It can be used for laying in indoor environments such as vertical shafts, concealed pipes, cable trays, walls, flower boards, etc. It can be matched with connectors for pre termination and on-site termination.

Get a Quote >

The Features of Single-core indoor cable

Transmission performance

Select quality fiber to ensure excellent transmission performance;

Compact

Small bending radius, compact and light-weight.

Good Protection

Flame retardant or non-flame-spread outer sheath, offering good protection.

Good flexibility

Good flexibility, especially suitable for making patchcord and pigtail.

Structure and Technical Specifications of Self-Supporting Butterfly Drop Cable

Type		1-4 Core	5*2mm
Weight		1-4 Core	20kg/km
Minimum bend radius		G657A1	15mm
		G657A2	7.5mm
Pulling force	short-term	GJYXCH	600N
		GJYXFCH	600N
	long-term	GJYXCH	300N
		GJYXFCH	300N
Storage temperature		-20℃～+70℃
Operating temperature		-20℃～+70℃
Remark: all the values in the table are reference value, subject to the actual customer request.

Structure and Technical Specifications of Self-Supporting Butterfly Drop Cable
