Name: Double-Core Cable
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

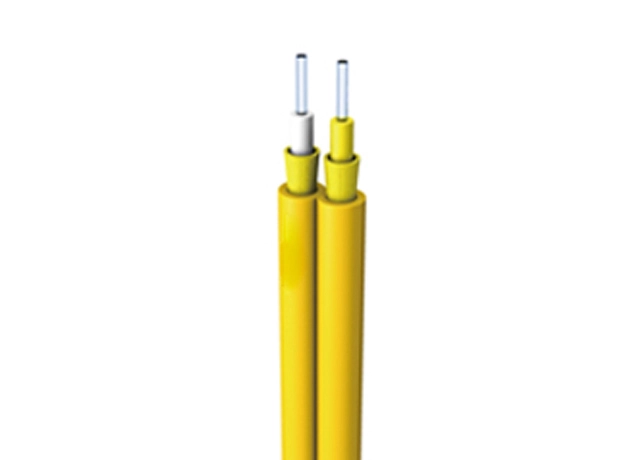

Double-Core Cable

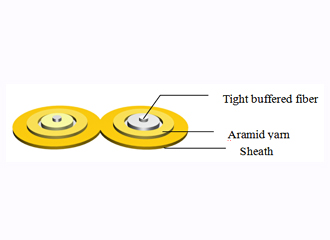

Figure 8 structure, double tight buffered fibers, high modulus aramid yarn strength member and high-performance sheath materials.Widely used in various optical jumpers and device leads, suitable for indoor and outdoor environments such as optical communication equipment rooms, optical distribution frames, and optical equipment connections.

Get a Quote >

The Feature of Double-Core Cable

Quality Fiber

Select quality fiber to ensure excellent transmission performance.

Easy for Branching

Small diameter, small bending radius, light-weight and easy for branching.

Range of application

Especially suitable for making double-core patchcord with connector;
Serve as pigtail, patchcord or flexible connection cable between equipments and meters in LAN or machine room inside buildings;
Indoor cabling.

Requirement for Order

Fiber type: single-mode fiber G652B/D, G657 or G655A/B/C, multi-mode fiber A1a, A1b or OM3, or other types.
Selection of materials: According to customer demand, the sheath materials can adopt PVC, PU, LSZH, PLENUM, etc.

Structure and Technical Specifications of Double-Core Cable

Type	Cable diameter	Weight	Tensile strength		Minimum bending radius(mm)		Crush resistance
	D (mm)	(kg/km)	(N)		Minimum bending radius(mm)		(N/10cm)
			Short-	Long-	Dynamic	Static	Long-	Short-
			term	term	Dynamic	Static	term	term
GJFJ8V-2	1.6x3.3	6			60	30
	1.8x3.7	7	200	100			100	500
	2.0x4.1	9
	2.8x5.8	14
Storage temperature		-20℃～+60℃
Operating temperature		-20℃～+60℃
Remark: all the values in the table are reference value, subject to the actual customer request.
