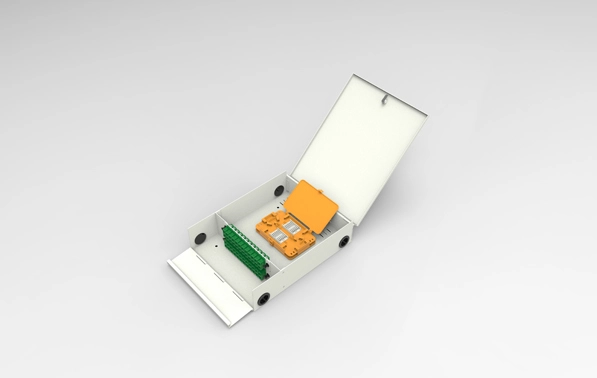

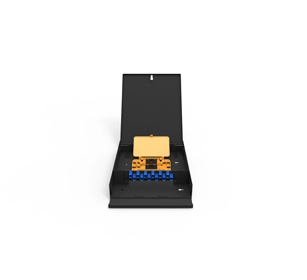

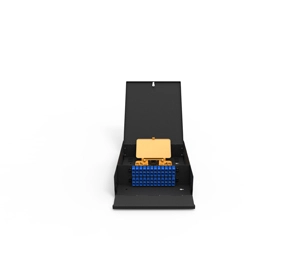

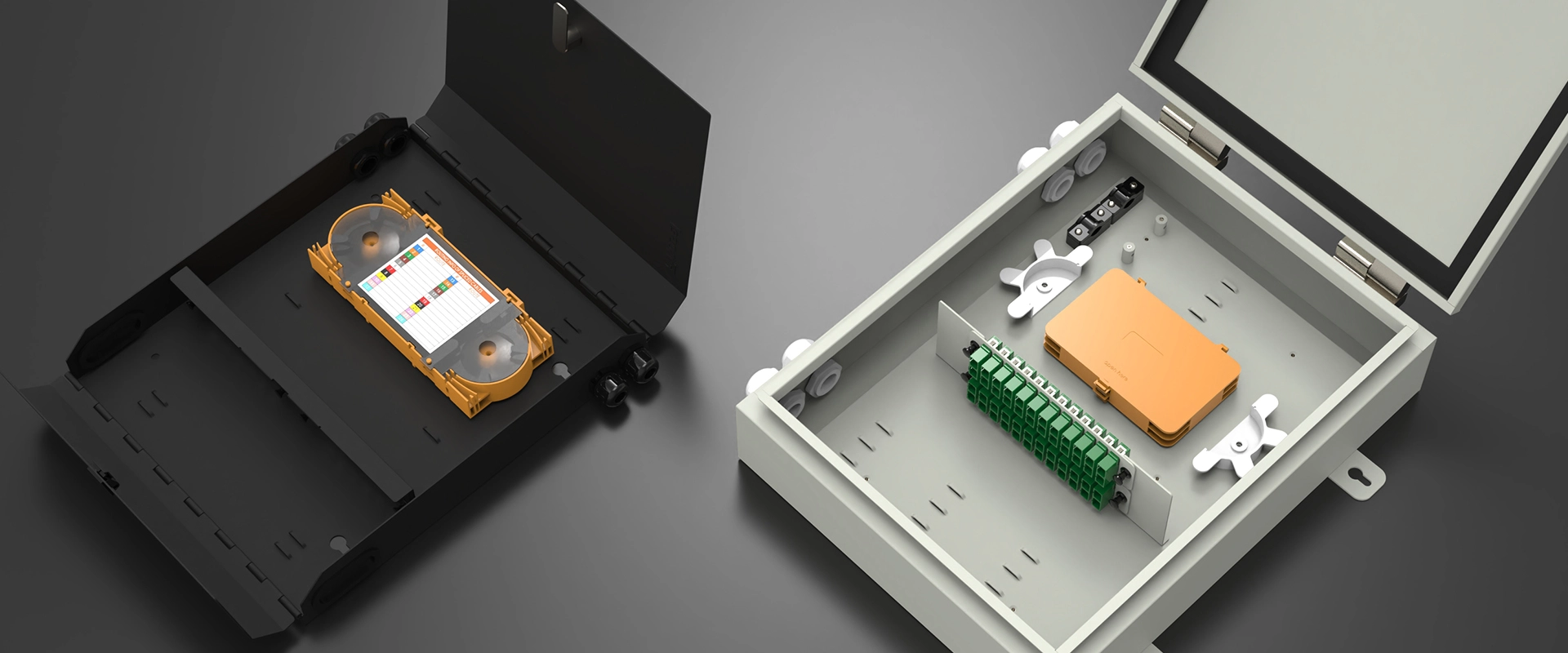

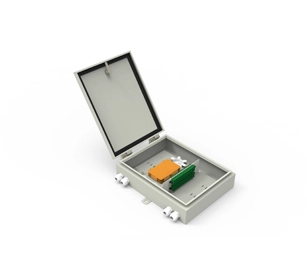

Wall Mount Fiber Optic Patch Panel/Termination Box/Splice Enclosure

Wall-mounted optical fiber distribution box is a fiber optic cable management product, which can be used for distribution and terminal connection of various optical fiber systems. According to the classification of shell materials, it can be divided into ABS plastic shell and metal shell. OTRANS strives to provide you with professional, reliable and comprehensive wall-mounted fiber distribution boxes.

Types of Wall Mount Fiber Patch Panels

WR1D55 Wall Mounted Fiber Patch Panel

Advantages of Wall-Mount Fiber Patch Panels in Limited Spaces

The wall-mounted optical fiber distribution box is usually installed directly on the wall of the building for optical fiber termination, optical fiber welding, optical fiber distribution and optical fiber storage, and is suitable for places where the number of optical cables and the number of optical fiber cores are small.

otrans

Installation Best Practices for Wall-Mount Fiber Patch Panels

1

The most important thing is to determine the installation position of the wall-mounted optical fiber distribution box, which needs to take into account the convenience and safety factors to ensure that the distribution box is easy to maintain and operate, and will not block the entrance or exit or cause safety hazards to personnel.

2

Before mounting the fiber cables, conduct pre-installation testing to ensure they are free from any faults or damage. After installation, perform comprehensive testing using tools like an OTDR (Optical Time-Domain Reflectometer) to verify signal quality and the integrity of the connections. Additionally, confirm that the installation complies with industry standards, such as TIA/EIA-568, to ensure proper certification for structured cabling systems.
