Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.

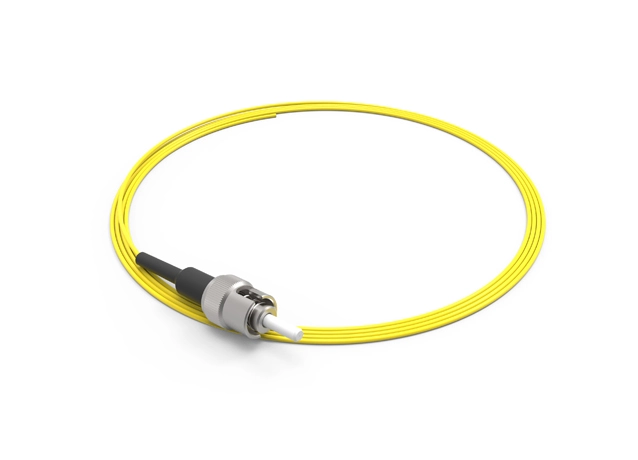

| ST UPC 2.0mm Pigtails | ||
| Connector type | ST | |
| Polish | UPC | |
| Fiber Type | SM | |
| Insertion Loss (typical) | ≤0.30dB | |
| Return Loss | ≥50dB (1310nm & 1550nm） | |
| Jacket Material (optional) | LSZH/PVC | |
| Vertical Tensile Strength | ≥70N | |
| Fiber Moder | G652D/G657A1/G657A2 | |
| Operating Temperature | -20~+70°C | |
