optical fiber distribution frame
optical fiber frame

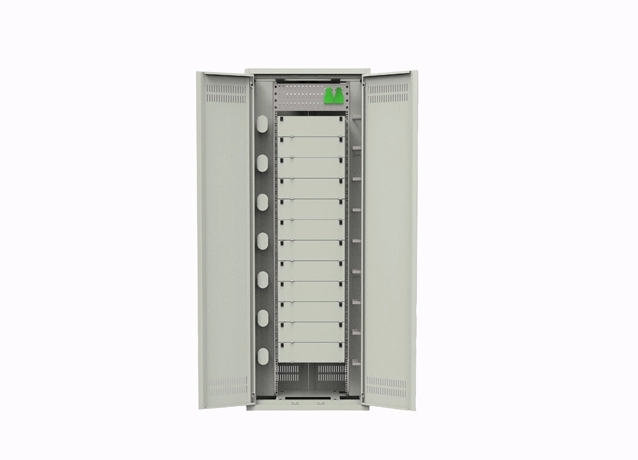

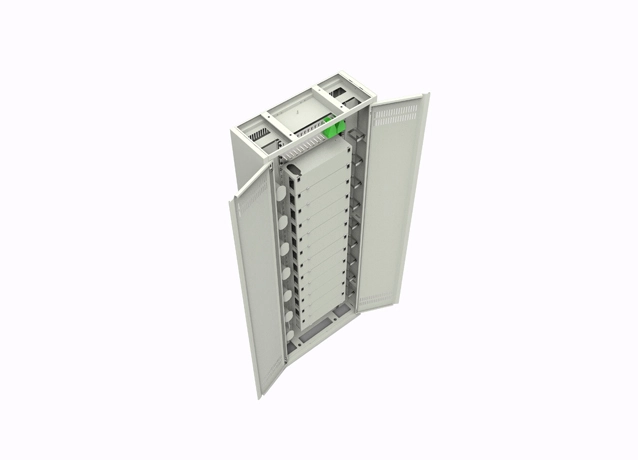

ODF Fiber Optic Distribution Frame

ODF fiber optic distribution frame, also known as fiber optic distribution cabinet, is a distribution equipment used for terminating, protecting, connecting, and managing optical cables and fibers in fiber optic communication networks. This device can achieve functions such as fixing, stripping, grounding protection of optical cables, as well as melting, jumping, winding, reasonable layout, and wiring scheduling of various optical fibers. It is a supporting equipment between transmission media and transmission equipment.
Get a Quote >

The Features of ODF Fiber Optic Distribution Frame

Standard 19 Standard 19
01
Standard 19" width
42U (648F) / 46U (720F) / 54U (864F) Optional 42U (648F) / 46U (720F) / 54U (864F) Optional
02
42U (648F) / 46U (720F) / 54U (864F) Optional
Enclosed frame with double door front and back Enclosed frame with double door front and back
03
Enclosed frame with double door front and back
Galvanized 4U cable fixing plate Galvanized 4U cable fixing plate
04
Galvanized 4U cable fixing plate
Optional different type UR series ODF with 270mm depth Optional different type UR series ODF with 270mm depth
05
Optional different type UR series ODF with 270mm depth
Customized LOGO and powder coating color Customized LOGO and powder coating color
06
Customized LOGO and powder coating color
High-quality sheet metal craft and mist powder spraying High-quality sheet metal craft and mist powder spraying
07
High-quality sheet metal craft and mist powder spraying

Parameter List of ODF Fiber Optic Distribution Frame

ODF Fiber Optic Distribution Frame
Dimension(W*D*H)800mm*300mm*(2000~2600)mm
Max. Fiber Counts864F(54U)
Operating temperature-5~+40℃
Operating humidity≤85%(+30℃)
