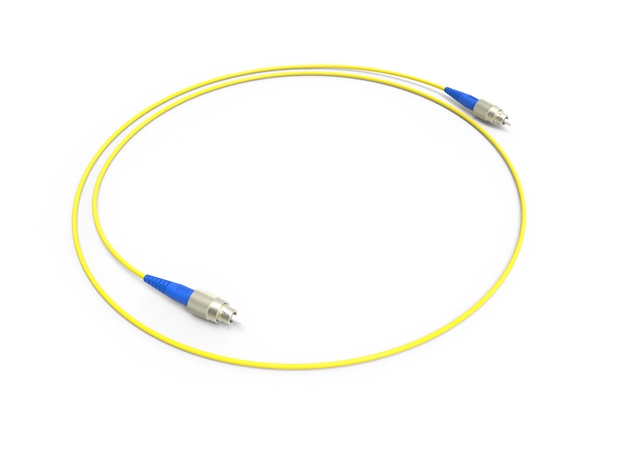

FC-FC UPC 2.0mm Simplex Patch Cord

Name: FC-FC UPC 2.0mm Simplex Patch Cord
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

Fiber optic patch cables refer to passive devices that connect different devices and systems in fiber optic communication by installing connector plugs on both ends of the fiber optic cable to achieve active connection of the optical path. It is used in combination with fiber optic distribution frames, junction boxes, terminal boxes, etc. to achieve efficient and flexible operation of the entire fiber optic communication network, with different specifications such as single mode/multimode/single core/dual core.

Get a Quote >

The Features of FC-FC UPC 2.0mm Simplex Patch Cord

Supports single-mode/multi-mode optical fibers.

High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.

Cabes sheath LSZH/PVC are optional.

The length of the fiber optic patch cables is customizable.

Parameter List of FC-FC UPC 2.0mm Simplex Patch Cord

FC-FC UPC 2.0mm Simplex Patch Cord
Connector type	FC
Polish	UPC
Fiber Type	SM	MM
Insertion Loss (typical)	≤0.30dB	≤0.20dB
Return Loss	≥50dB (1310nm & 1550nm）	≥25dB (850nm & 1300nm）
Jacket Material (optional)	LSZH/PVC
Fiber Moder	G652D/G657A1/G657A2
Operating Temperature	-20~+70°C
