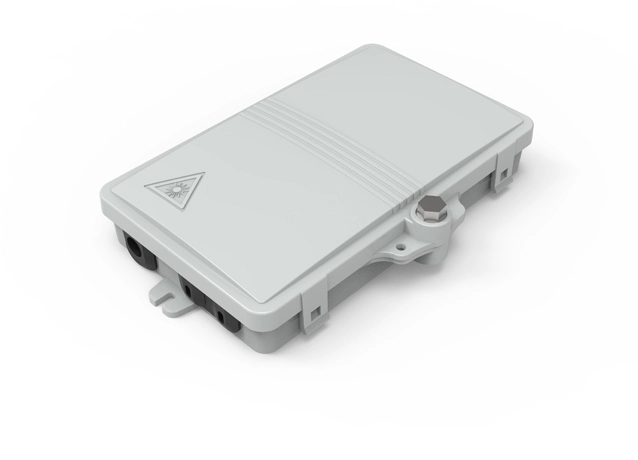

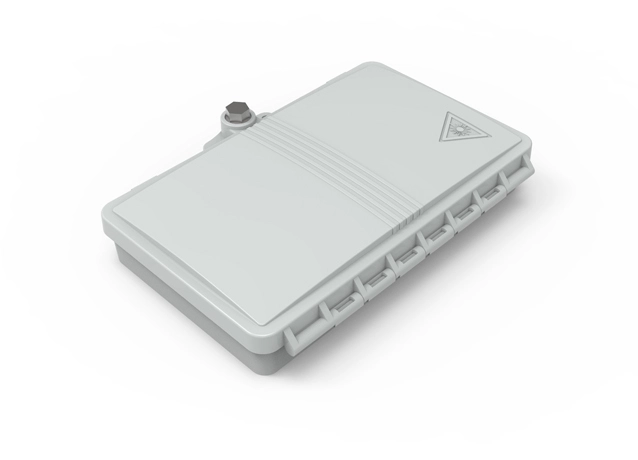

Total enclosed structure.
Material: PC+ABS, wet-proof、 water-proof、 dust-proof, anti-aging, protection level up to lP65.

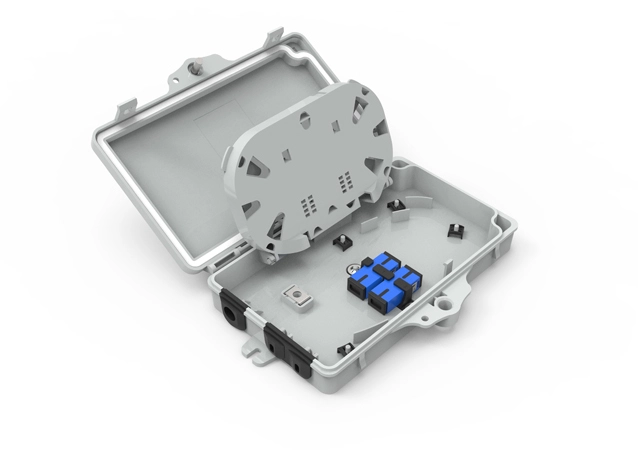

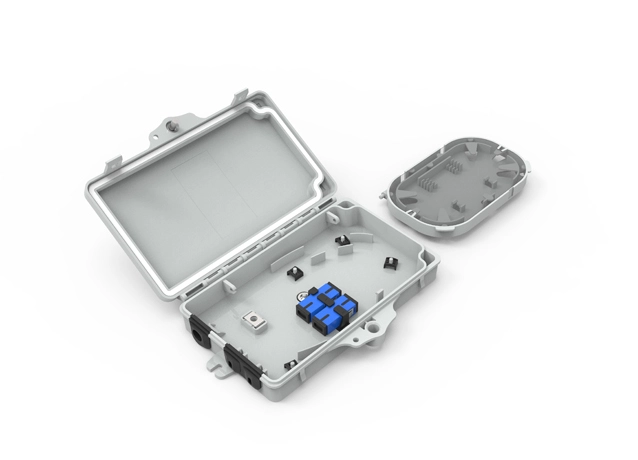

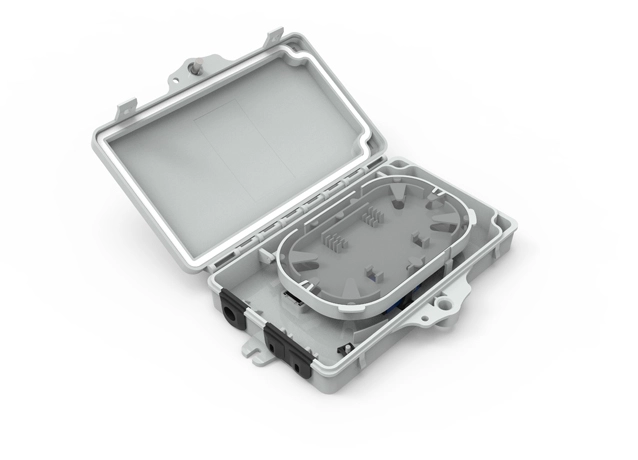

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution..etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each othercassette type SC adaptor installation, easy maintenance.
Can be flipped up, feeder cable can be placed in a cup-joint wav, easy for maintenance and insta ation.
Can be installed by the wav of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
| Product Specification | |
| Moudle | BOB-002B |
| Dimension（W*D*H） | 102mm*167mm*31mm |
| Working Temperature | -40°C~+85°C |
| Relative humidity | ≤85%(+30°C) |
| Atmospheric pressure | 70KPa~106Kpa |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | >1000 times |
| Standard accessories | User Manual*1/Key*1/Accessories Bag*1 |
